Product Overview
The SAE 100 R1 AT / DIN EN 853 1SN is a professional-grade, single-wire braided hydraulic hose engineered for medium to high-pressure applications. Featuring a robust three-layer construction, it consists of an oil-resistant synthetic rubber inner tube, a high-strength steel wire braid reinforcement, and a weather-resistant outer cover. This hose is meticulously manufactured to meet and exceed the stringent requirements of the Society of Automotive Engineers (SAE) and European EN standards, ensuring maximum safety and reliability in demanding fluid power systems.
Designed for versatility and durability, this hydraulic hose is ideal for conveying oil-based or water-based hydraulic fluids across various industries. With an operating temperature range from -40°C to +100°C and MSHA approval, it provides exceptional resistance to abrasion, corrosion, ozone, and aging. Whether integrated into construction machinery, agricultural equipment, or industrial presses, the Sinopulse 1SN/R1AT hose delivers consistent performance and a high safety factor of 4:1 to prevent system failure in critical environments.
Detailed Parameters
| Standard Compliance | ISO 1436 R1AT, SAE J517 100R1, EN 853 1SN | Safety Factor | 4:1 |
|---|---|---|---|
| Inner Tube Material | Oil-resistant synthetic rubber | Reinforcement | One layer of high-strength steel wire braid |
| Outer Cover | Weather/Oil/Abrasion-resistant synthetic rubber | Temperature Range | -40°C to +100°C (-40°F to 212°F) |
| Intermittent Service | Up to 120°C (248°F) | Inside Diameter Range | 3/16 inch to 2 inches |
| Max Working Pressure | Up to 3045 PSI (depending on ID) | Approval | MSHA Approved |
Key Advantages
Extreme Durability
Engineered with high-quality synthetic rubber to resist abrasion, corrosion, and ozone aging.
Long Service Life
High-strength steel wire braiding ensures structural integrity under repetitive pressure cycles.
Global Standards
Fully compliant with SAE 100, DIN EN 853, and ISO standards for universal compatibility.
Wide Compatibility
Suitable for petroleum, water-based fluids, gasoline, diesel, and mineral oils.
Temperature Resilience
Stable operation from extreme cold (-40°C) to high-heat environments (+100°C).
Custom Assemblies

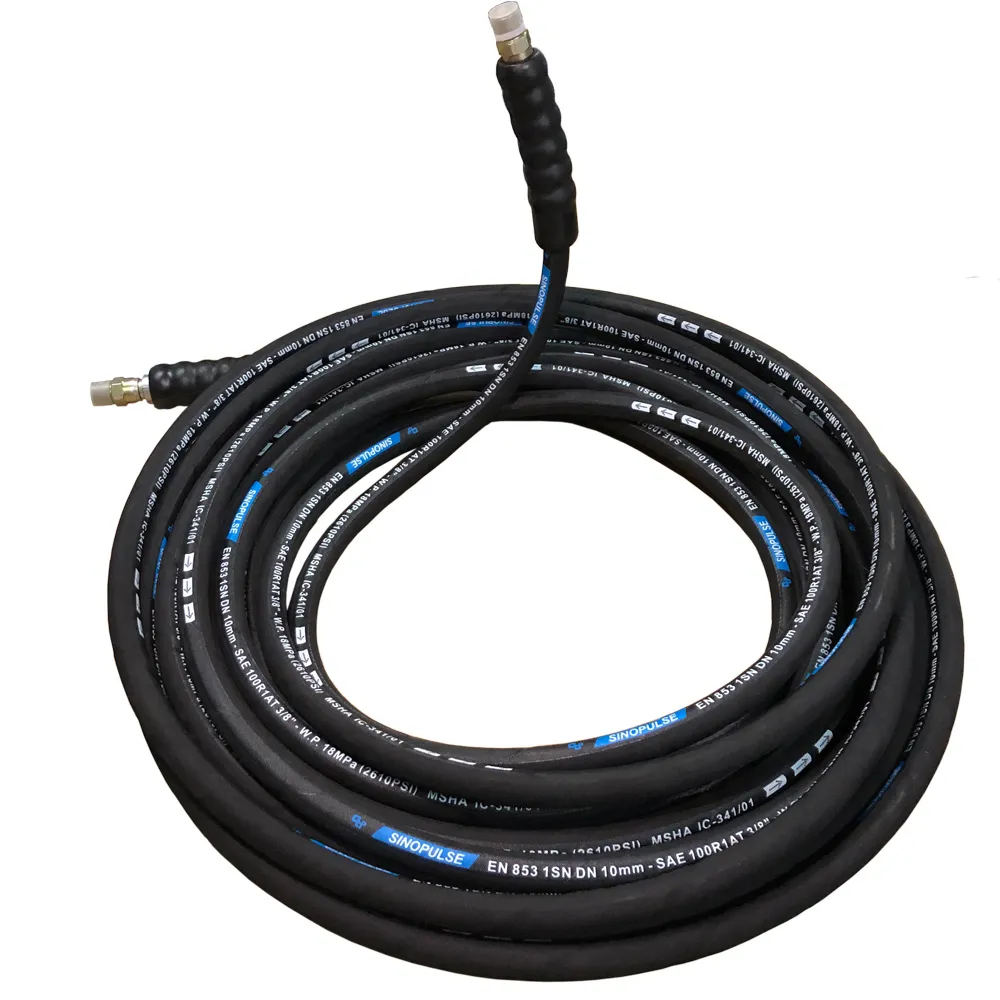

Available as pre-crimped assemblies with customized lengths and fittings for your project.

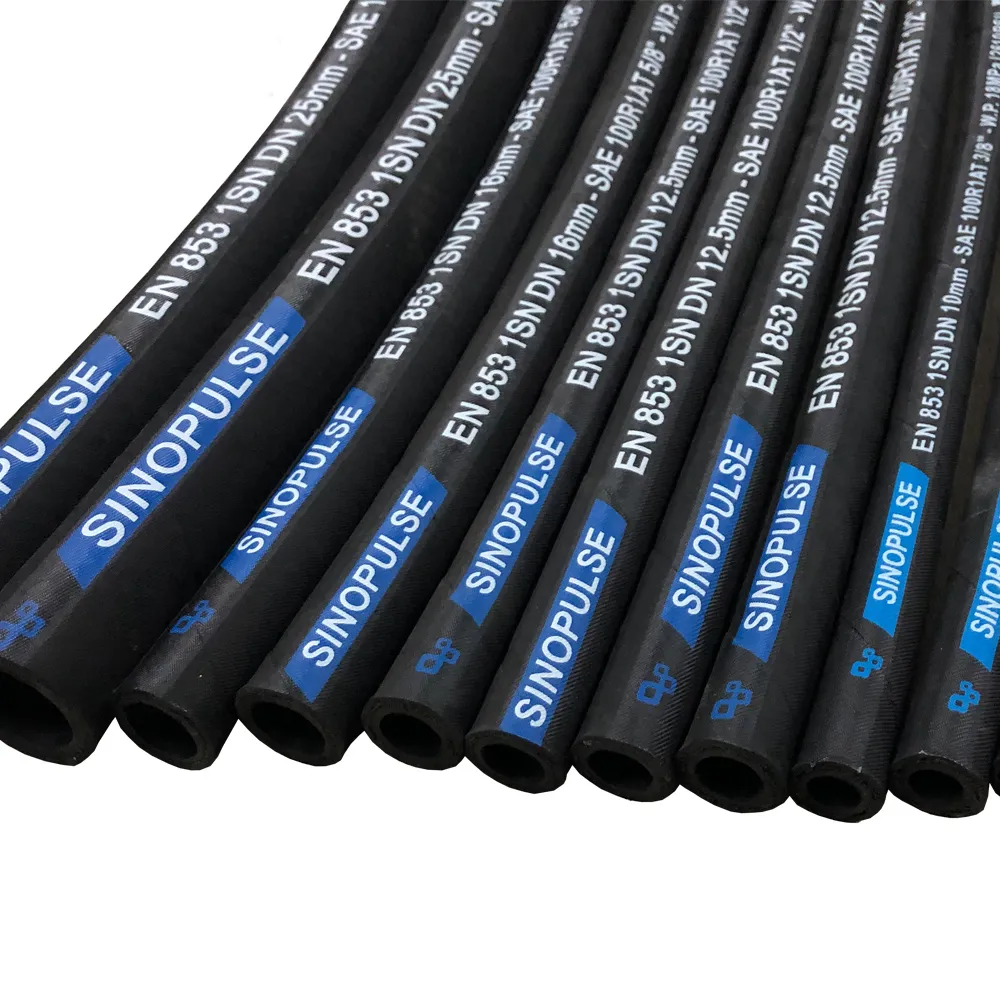

Product Gallery
Management Platforms
Precision Manufacturing
Advanced production lines ensuring strict adherence to DIN and SAE dimensional tolerances.
Quality Control
Rigorous testing for burst pressure and leak-proof performance on every batch.
Certification Tracking
Full traceability of MSHA and ISO approvals for safety-critical mining and industrial use.
Inventory Management
Large stock of various IDs (3/16" to 2") for rapid global deployment.
Assembly Logistics
Integrated crimping and cutting services for turnkey hydraulic hose assemblies.
Export Expertise
Professional export management ensuring secure packaging and timely international delivery.
Investment Return Comparison
| Feature | Standard Rubber Hose | Sinopulse 1SN/R1AT | Business Impact |
|---|---|---|---|
| Service Life | Short/Moderate | Extended/Heavy-Duty | Lower Replacement Costs |
| Pressure Stability | Prone to expansion | High-Strength Braid | Increased System Safety |
| Environmental Resistance | Basic Weathering | Oil/Ozone/Abrasion Resistant | Reduced Downtime |
| Compliance | Generic Standards | SAE/DIN/MSHA Certified | Easy Regulatory Approval |
| Customization | Standard Sizes Only | Custom Assemblies | Perfect Fit/Less Waste |
Frequently Asked Questions
While both follow the SAE J517 standard, the "AT" designation typically indicates more stringent performance requirements, offering higher working pressures and enhanced durability for more demanding hydraulic environments.
Yes, these hoses are designed for conveying both oil-based and water-based hydraulic fluids, making them highly versatile for various industrial machinery applications.
A 4:1 safety factor means the burst pressure of the hose is four times higher than its maximum recommended working pressure, providing a critical safety margin against unexpected pressure spikes.
Absolutely. Our hoses are MSHA approved, which means they meet the safety standards required for use in mining environments, particularly regarding flame resistance and durability.
Generally, there is an inverse relationship: smaller diameter hoses can withstand higher pressures. For example, a 3/8" ID hose handles 18MPa, while a 1" ID hose handles 8.7MPa.
Yes, we offer full customization. We can provide finished assemblies with pre-attached crimp fittings tailored to your specific length and connection requirements.
